Anti Glare / Anti Reflective / Privacy Protective Film for Displays
Film laminations provide a wide range of physical and optical enhancements, from increasing safety and strength, to reducing glare and providing privacy. With an extremely diverse and versatile selection of available films, E3 Displays is able to meet a wide range of performance requirements and maintain touch sensitivity. E3 Displays has laminated film enhancements on products from 2.7″ to more than 100”. With a wide range of partnerships with top film suppliers, we can help select the right films to meet your product requirements. Whether you need a clear anti reflective film for a handheld device or protective film for large format touch screen displays, our Phoenix, AZ engineering team matches the film to your display technology, touch sensor and operating environment.
Common Applications
Types of Film Lamination

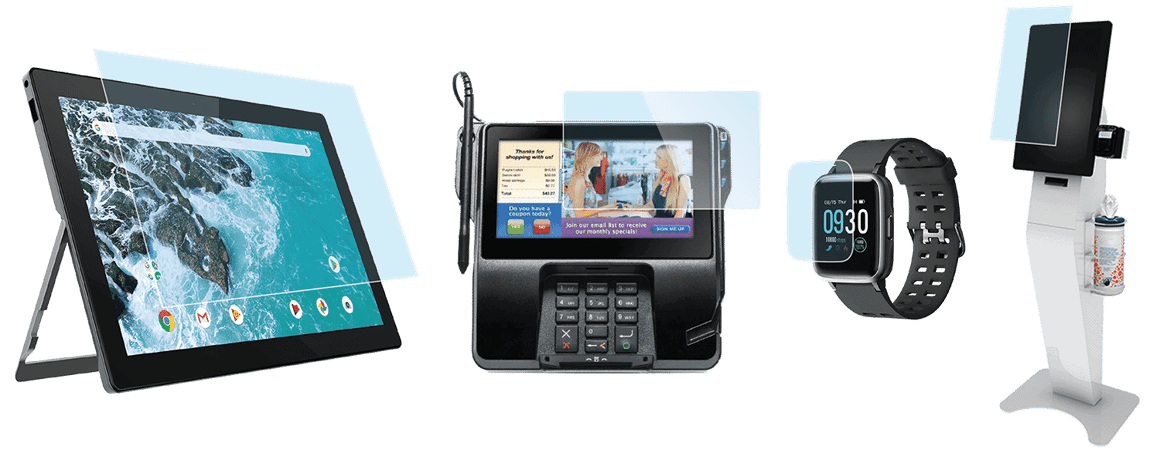

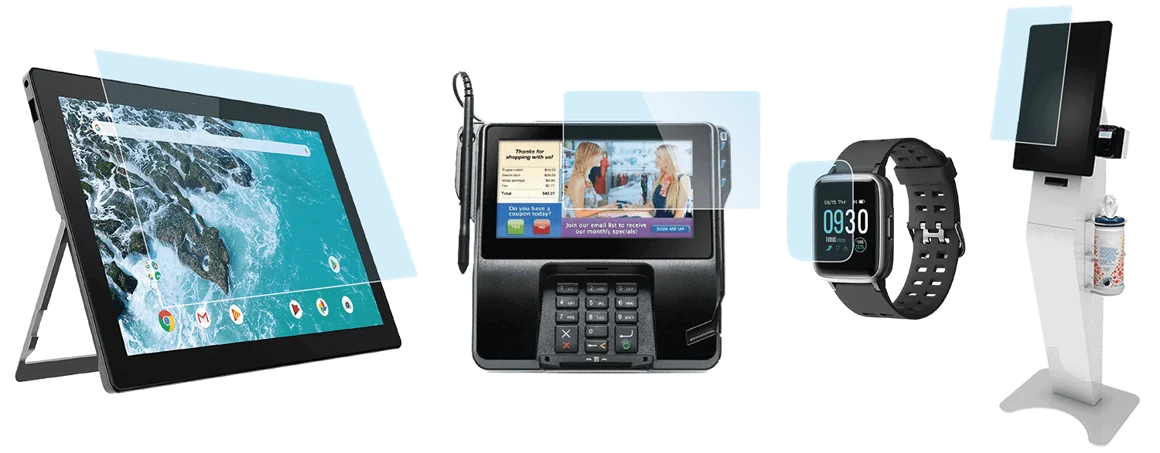

These touch screen protection films are laminated to the front surface of the LCD panel either under or directly in the frame. They make the display brighter and have a higher level of contrast by reducing the surface reflections, softening direct light, and eliminating display distortion from touch.
Anti-Reflective Film vs. Anti-Glare Film: Which Fits Your Display?

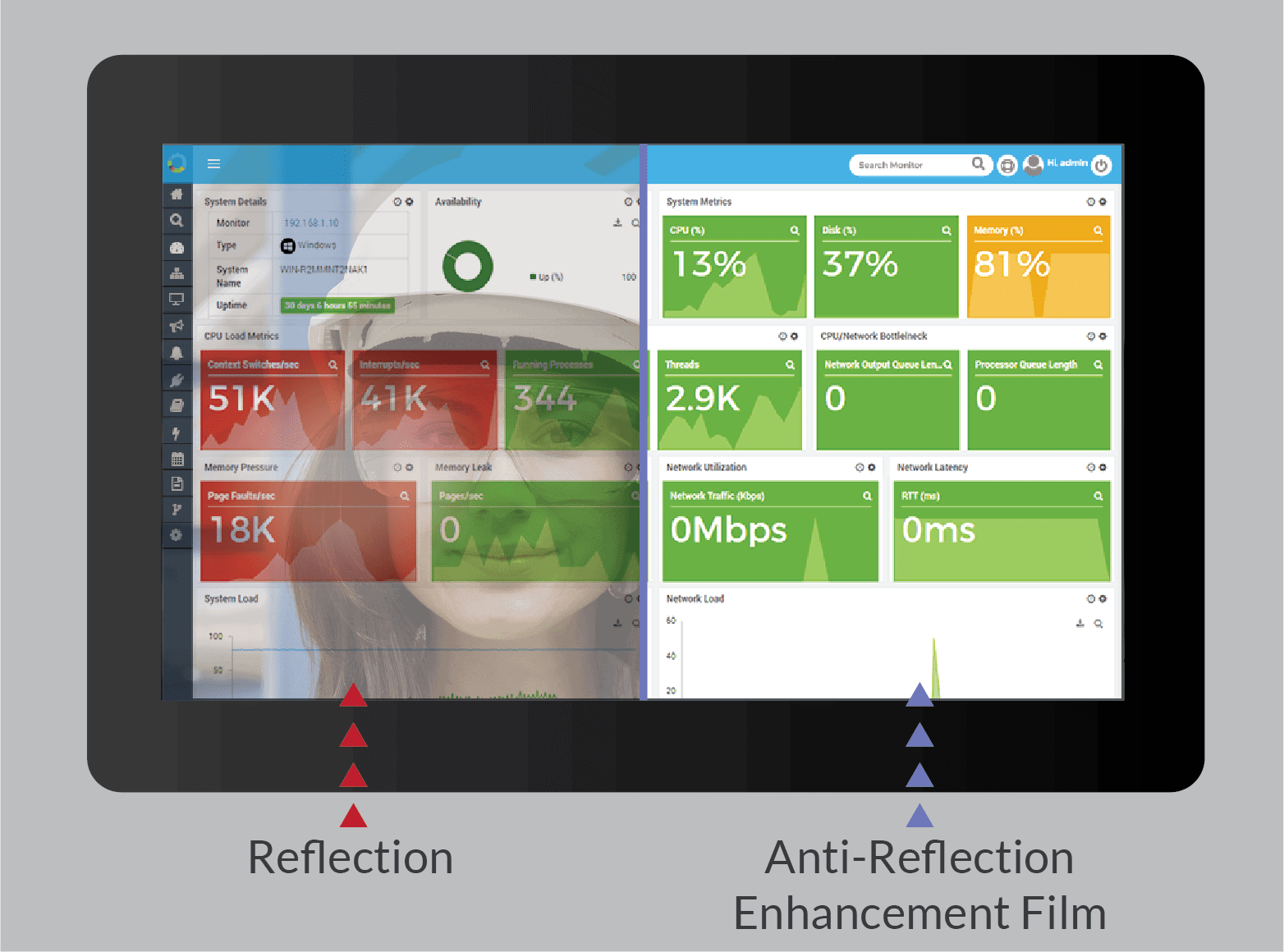

- Anti-reflective film: cancels reflections with optical interference layers, keeps a clear, glossy image and suits high-resolution, color-critical and sunlight-readable displays.

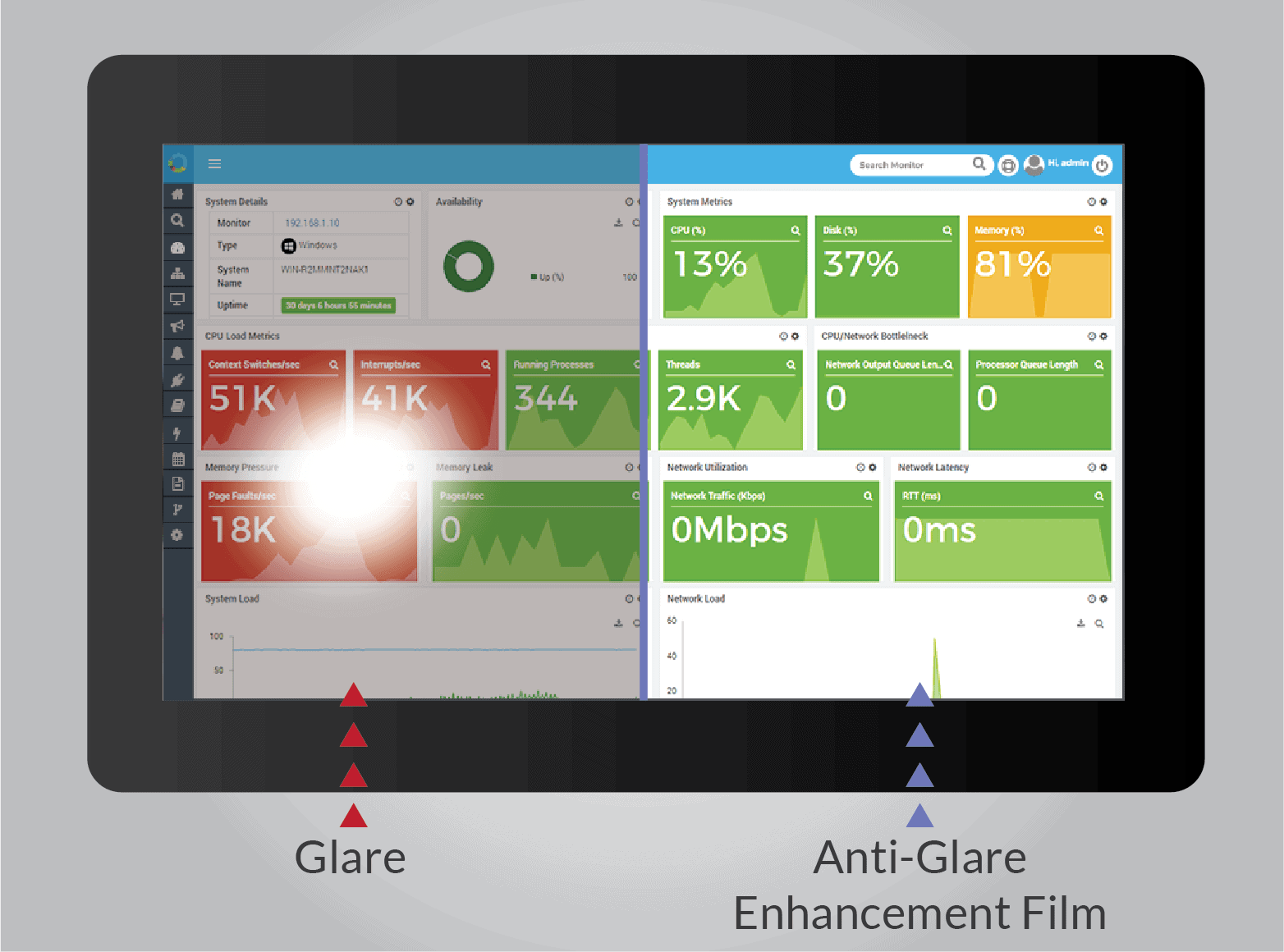

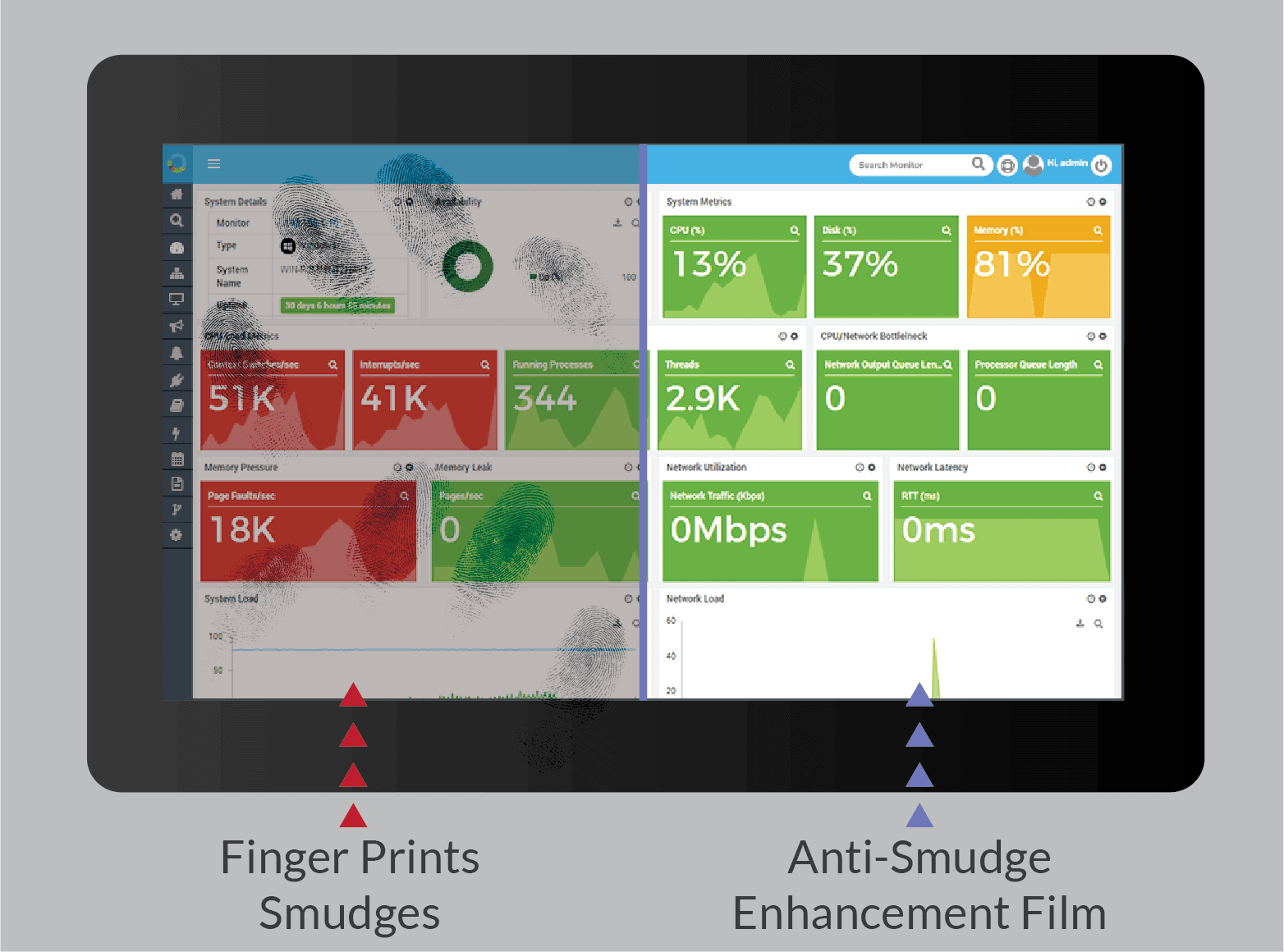

- Anti-glare film: diffuses reflections with a matte surface, hides fingerprints well and suits public, high-touch screens where slight image softening is acceptable.
- Combined AG/AR film: pairs a light matte texture with anti-reflective layers for outdoor screens that face both direct sun and heavy touch use.
Crystal Clear Displays With Minimized Glare and Reflective Interference
Benefits of Film Lamination
Touch Capabilities
Many touch screen protection films can negatively impact the touch features of your display because they’re too thick, can reduce touch sensitivity, and are not customized for your display. E3’s film lamination is completely custom and designed with the user in mind so you do not have to sacrifice display quality. We select film thickness and adhesives to suit the touch sensor, whether PCAP or resistive, so touch response is preserved.
Anti-Glare/Anti-Reflective
If you have an existing display with glare or reflection issues there is no need to create an entirely new display. E3 Displays can solve your glare and reflection issues on almost any existing display. Anti reflective screen film can also be combined with optical bonding, which removes the air gap behind the cover glass and reduces internal reflections for even better sunlight readability.
Large Format Lamination
Just because you have a large format display does not mean it cannot benefit from film lamination. E3 can laminate displays up to 100″.
Withstand the Elements
You need a display that can hold up in all kinds of environmental elements. E3 strengthens displays with film lamination that can be used with gloves, wet hands, rain, mid-summer sun, snow and much more.
How to Specify Anti-Reflective Film for Your Display
- Review the display: consider panel type (TFT LCD, IPS or OLED), size, brightness in nits, touch technology and the lighting where it will be used
- Select the film stack: choose anti-reflective, anti-glare, anti-fingerprint, privacy, conductive or specialty films; E3 can help select them through its film supplier partners.

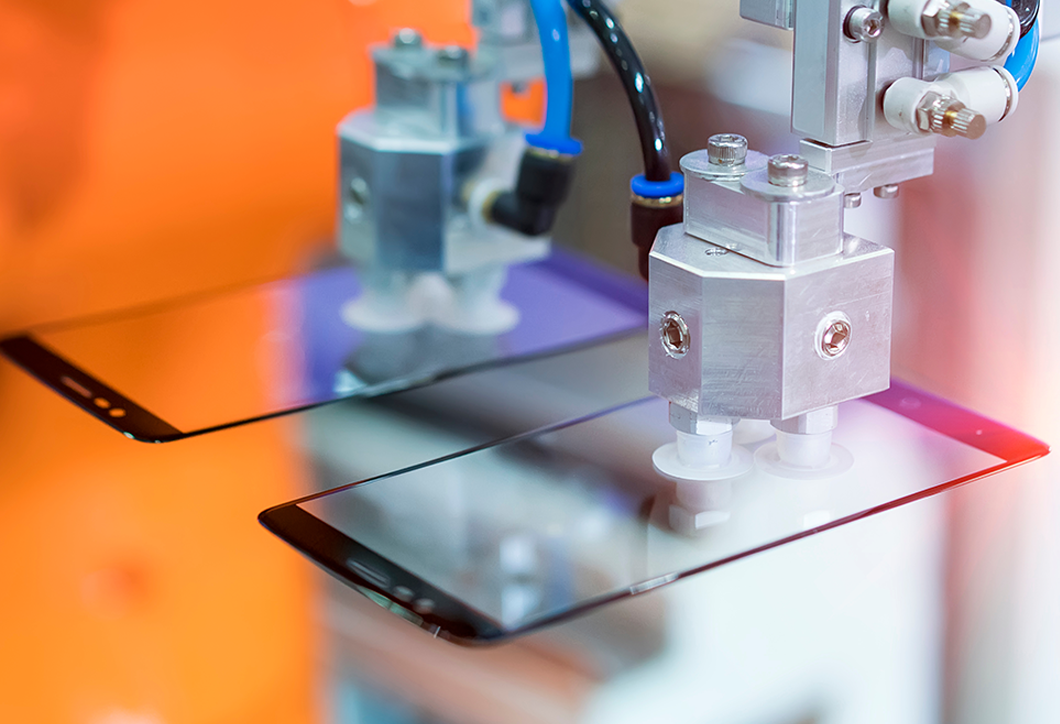

- Laminate and integrate: the film is laminated to the display or cover lens under or directly in the frame, and can be paired with optical bonding.
- Verify the result: confirm clarity, touch response and cosmetic quality on samples before moving to production.
Our Experienced Team is Ready to Help
Our E3 Displays team has expertise in every type of display technology, whether big or small. We will help you choose or design the display that best fits your needs, while always keeping quality and budget in mind. Here at E3 Displays, we specialize in custom displays use our product selection guide today to get started on your project today!
